Product Description

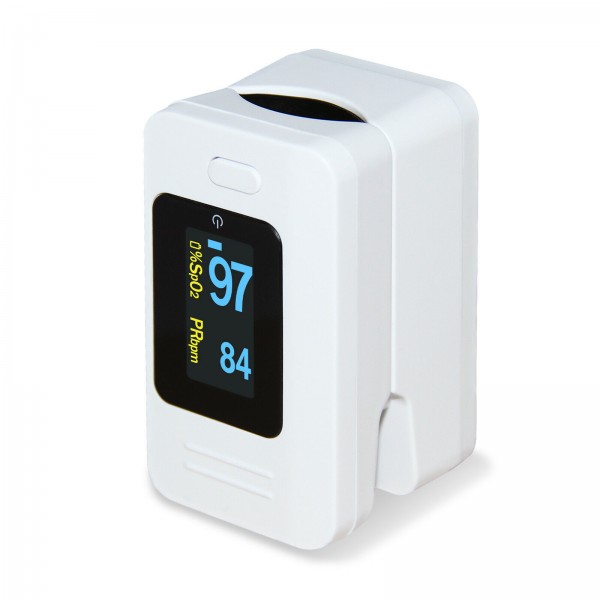

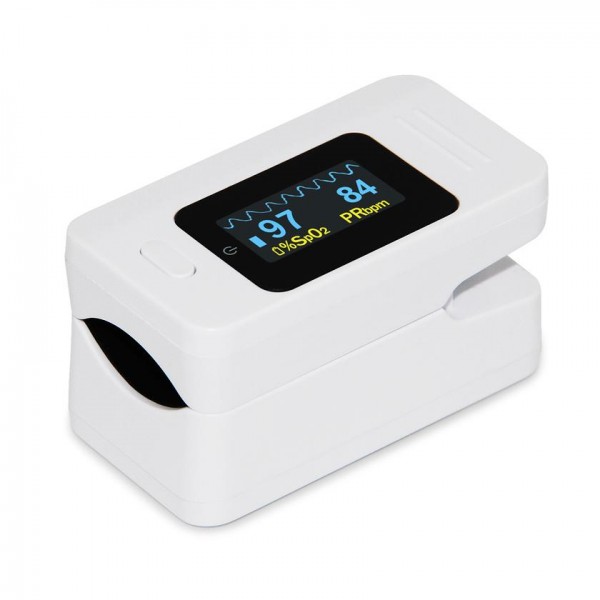

CMS50D4 Pulse Oximeter is a portable equipment adopting advanced technology, it mainly checks SpO2 and PR value through the finger, which provides advanced, non-invasive and scientific means for quantitative measurement of oxygen saturation.

CMS50D4 Pulse Oximeter is applicable for use in plateau area, community healthcare, oxygen bar, Fitness clubs, physical training room, family and medical institution.

Features
1) Can measure SpO2 and Pulse Rate accurately
2) SpO2 and Pulse Rate display,Pulse Rate waveform and bar graph display
3) Battery voltage low indication
4) The display mode can be changed.
5) Screen brightness adjustable

Performance
SpO2 measurement range: 0%~100%
Accuracy: 70%~100%: ±2%
0%~69%: unspecified
PR measurement range: 30bpm~250bpm
Accuracy: ±2bpm or ±2%, whichever is greater.
Resolution:
SpO2: 1%
PR: 1bpm

Measurement Performance in Weak Filling Condition: SpO2 and pulse rate can be shown correctly when pulse-filling ratio is 0.4%. SpO2 error is ±4%, pulse rate error is ±2 bpm or ±2%, whichever is greater.
Resistance to surrounding light: The deviation between the value measured in the condition
of man-made light or indoor natural light and that of darkroom is less than ±1%.

Working current: =30mA
Power supply: two “AAA” batteries
Safety classification: type BF applied part
Physical characteristic
Dimension: 57mm(L) × 34mm(W) × 31mm(H)

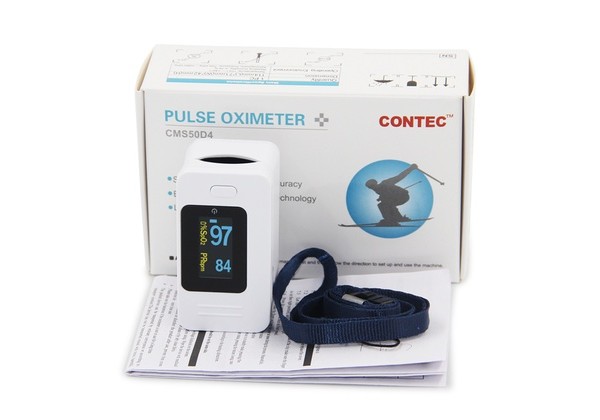

INCLUDED : OXIMETER , LANYARD , INSTRUCTION MANUAL
