Product Description

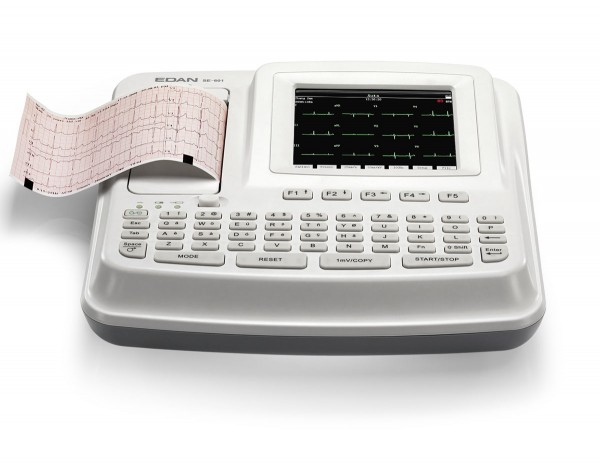

Six-channel ECG SE-601 series : SE-601A, SE-601B, SE-601C, cost-effective solutions including hospital wards, routine check, home visit and emergency cases.
Features:
• FDA Approved
• Heart rate variability (HRV) & R to R Trending analysis
• Portable, lightweight design
• Easy data input and operation
• Alphanumeric keyboard and one-touch operation
• Built-in rechargeable battery, AC/DC power supply
• Pacemaker detection which meet the requirements of ANSI/AAMI EC11
• Automatic analysis and diagnostic software for adults and pediatrics
• Two-step exercise test with periodic recording
• Internal thermal printer and external printer
• Support external archiving: USB flash disk, card reader
• Data transmission to PC via Ethernet or serial port
Technical Specifications:
• Input Circuit: Defibrillator protection
• Lead: Standard 12 leads
• Acquisition Mode: 12 channel simultaneous acquisition (10-24s adjustable)
• A/D Converter: 24 bits
• Sampling rate: 1000Hz/channel, 10,000HZ for pacemaker detection
• Noise Level: ±5mVp-p
• Time Constant: >3.2s
• Frequency Response: 0.05Hz – 150Hz
• Calibration Voltage: 1mV±2%
• Sensitivity: 2.5, 5, 10, 20, 10/5, AGC (mm/mV)
• Input Impedance: >50MΩ
• Input Circuit Current: <10μA
• Noise Level: <12.5μVp-p
• Patient Leakage Current: <10μVp-p (220V-240V)
• Patient Auxiliary Current: <0.1μA (DC)
• Filter:
EMG Filter: 25Hz/35Hz/45Hz/OFF
Anti-baseline drift: 0.05/0.15/0.25/0.5Hz
Low-pass Filter: 75Hz/100Hz/150Hz
AC Filter: 50Hz/60Hz
• CMRR: >115dB
• Recording Mode: Auto/Manual/Rhythm
• Rhythm lead: Single channel or three channels selectable
• Power Supply:
AC: 100-240V, 50/60Hz
12V Vehicle-Carried Inverter
Li-on battery
• Battery: Built-in rechargeable Li-on battery, 2200mAh, 14.8V for 6 hours general use or 280 copies ECGs continuous printing
• Recorder: Thermal printer
• Record Paper: 110mm x 140mm x 144p (Z-fold)
• Paper Speed: 5mm/s, 6.25mm/s, 10mm/s, 12.5mm/s, 25mm/s, 50mm/s (±3%)
• Weight: Approx. 3kg (including battery and paper)
• Dimension: 322mm x 310mm x 101mm
• Display:
3.5 inch STN LCD, 192×64 dots (SE-601A)
5.7 inch STN LCD, 320×240 dots (SE-601B)
5.7 inch TFT color LCD, 640×480 dots (SE-601C)
• External Input/Output:
Input: > 100kΩ ; Sensitivity 10mm/V ±5%
Output: < 100Ω ; Sensitivity 1V/mV ±5%
• Communication Interface: Ethernet, RS232
