Product Description

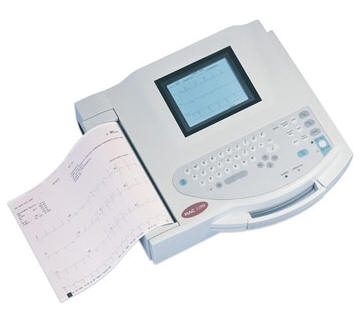

MAC 1200 EKG
The MAC 1200 Resting ECG system is a 12-lead electrocardiograph with full-size paper, alphanumeric keypad and waveform display. Optional Marquette 12SL ECG analysis program, data storage, and bi-directional data transmission capability. AC line or battery operation from NiCd battery.
All models listed include a starter kit (Silver Mactrode Plus electrodes, alligator clip adapters, banana connectors, paper, patient cable, patient leadwires, and power cord).
• Waveform display.
• Full-size paper reports.
• Measurements,interpretation and memory available in any combination.
• Simultaneous 12-Lead ECG acquisition and analysis.
• Battery powered.
• 3-Year Warranty.
• Easy to use.
• Compact, lightweight design w/ carrying handle.
• Field upgradability.
Technical Specifications:
• Acquisition: 12 leads – simultaneously
• Signal input: Type CF according to IEC
• Digital sampling rate: 1000 samples/second/channel
• Resolution: 5 µV
• Frequency response: 0.04 – 150 Hz
• Common mode rejection: > 140 dB
• Input impedance: > 100 M1/2
Display:
• Type: LCD 320 x 240 pixel, backlit Contrast adjustable
• Displayed data: Selected lead group, operation mode, lead check, heart rate, AC filter, muscle filter, ADS, gain, speed, name, ID, 3 ECG waveforms.
Power Supply:
• Ratings: 110 – 120 V (0.32A) / 220 – 240 V (0.16A)
• Frequency: 49 – 65 Hz
• Battery type: NiCad, 18V, 1.4 Ah
• Battery charge time: 4 hours
Physical Specifications:
• Width: 14.5 in (370 mm)
• Height: 3.7 in (94 mm)
• Depth: 12.6 in (320 mm)
• Weight: 12.4 lb. (5.6 kg) with graphics display and battery
MAC 1200 ‘Basic’ MAC1200-AAX-AXX-XXX
Non-interpretive electrocardiograph and waveform display.
MAC 1200 ‘Plus’ MAC1200-AAX-CXX-XXX
Interpretive electrocardiograph with 12SL ECG analysis program and waveform display.
MAC 1200 ‘Deluxe’ MAC1200-AAX-FAX-XXX
Interpretive electrocardiograph with 12SL ECG analysis program, memory, modem and waveform display.
Cable Part Number: 22341809
Leadwire Part Number: 420101-002
Connector Part Number: 900178001
